Zen Life

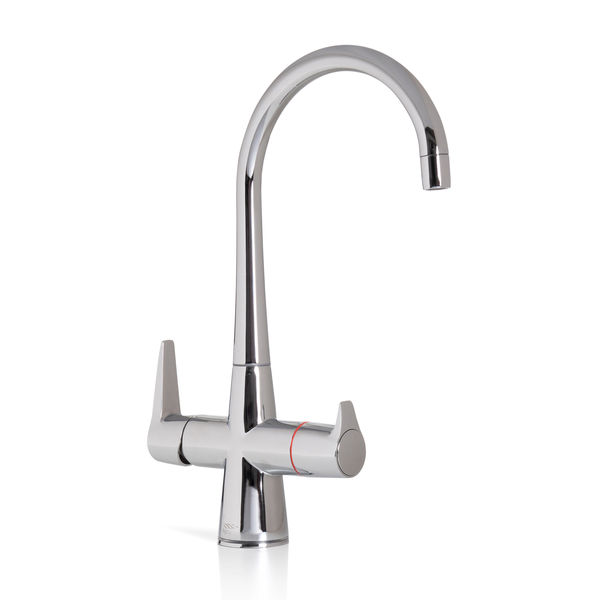

Boiling Water Tap with Kitchen Hot and Cold Mixer
3 and 6 litre boiling water tank
Usage:
The Zen Life is a practical and stylish choice when considering the design and requirements of any kitchen environment.
The elegant 3 in 1 tap provides instant boiling water alongside hot and cold mixer tap capabilities.
It is perfect for retro-fit applications as well as new kitchens. This is the only tap you need in your kitchen.
- Features
- Technical Specifications
- Data Tables
- Videos
Features
Features
• Creates a clutter free and simplified design within any kitchen or office
• Instant boiling water ideal for a wide range of kitchen uses
• Designed and assembled in the UK
• Time and space saving
• Energy efficient - standing loss only 17 W for 3L boiling tank and 20 W for 6L model
• High flow rate over 3 l/m and high initial capacity makes it quick and easy to use
• Safety lock on the boiling water side
• Innovative aerogel insulation on boiling water tank minimises losses
• Boiling water tank has smart technology algorithms that learn and predict usage
• Cool touch insulated tap with 360° swivel function
• Zen Life tap should be mounted over a sink. Not suitable for use with a Zen font and drain.
• Boiling water status ring on base of tap to indicate ready or heating (green/ red LED)
• Available with 3 or 6 litre boiling water tank
• Power rating 1.60 kW for 3 litre model and 2.84 kW for 6 litre model
• Standard sink hot and cold mixer supplied from your existing hot and cold mains water supply
• Consider installing a Speedflow to provide hot water for dish washing if there is no central heating system nearby
• Must be fitted with initial scale filter (F5SST) supplied for inlet to boiling tank
• Elongated mixer lever for ease of use total length 100 mm length from centre 80 mm
• Shorter mixer lever for restricted space kitchens total length 70 mm length from centre 55 mm
• Recovery Rate 90 cups/ 60 mugs per hour for 3 litre model and 160 cups/ 107 mugs per hour for 6 litre model based on 167 ml cup and 250 ml mug
Technical Specification
Outer Casing
Tap - polished chrome finish as standard
Other tap finishes available at additional cost (see Zen Tap Finishes)
Tank - durable high impact PC/ ABS
Water Tank
High quality grade 316L stainless steel
Heating Element
Incoloy
Thermostat
Electronic to control water up to boiling point
Insulation
Highly efficient aerogel thermal insulation
Initial Draw off
3 litre model - 18 cups/ 12 mugs based on 167 ml cup and 250 ml mug.
6 litre model - 36 cups/ 24 mugs based on 167 ml cup and 250 ml mug.
Safety
Overheat temperature protection (manual re-set).
Safety lock mechanism.
Supplied expansion vessel and pressure relief valve must be fitted.
IP Rating
IPX1
Installation
This appliance must be installed in a frost free environment.
Required hole diameter for mounting tap 32mm – fits in a standard sink. Sink/ counter top up to 50mm thick.
Plumbing
Must be installed by a suitably qualified person.
Intended for connection to the mains water supply.
Minimum water pressure 1 bar.
Maximum water pressure 4.2 bar. If higher than this a pressure reducing valve is required.
Supplied expansion vessel and pressure relief valve must be fitted.
Electrical Connection
Installation must comply with current IET wiring regulations.
Supplied with a pre-wired (1m) BS plug.
Approvals
CE, UKCA
Standard Warranty
2 years parts or replacement warranty. Supplied scale filter must be fitted and changed at least every 6 months otherwise the warranty may be void.
Data Tables
| Product Code | Capacity (litres) | Heat Up Time (mins) | Standing Loss (kWh/day)* |
|---|---|---|---|
| LIFE3L | 3 | 12 | 0.42 17 W |
| LIFE6L | 6 | 14 | 0.50 20 W |
| Product Code | Height (mm) | Width (mm) | Depth (mm) | Weight (kg) Empty | Weight (kg) Full |
|---|---|---|---|---|---|
| ZEN Life Tap (all models) | 365 | 286 | 56 | 2.5 | - |
| ZEN Life 3L Tank | 460 | 182 | 221 | 5.8 | 8.8 |
| ZEN Life 6L Tank | 460 | 220 | 270 | 6.7 | 12.7 |
