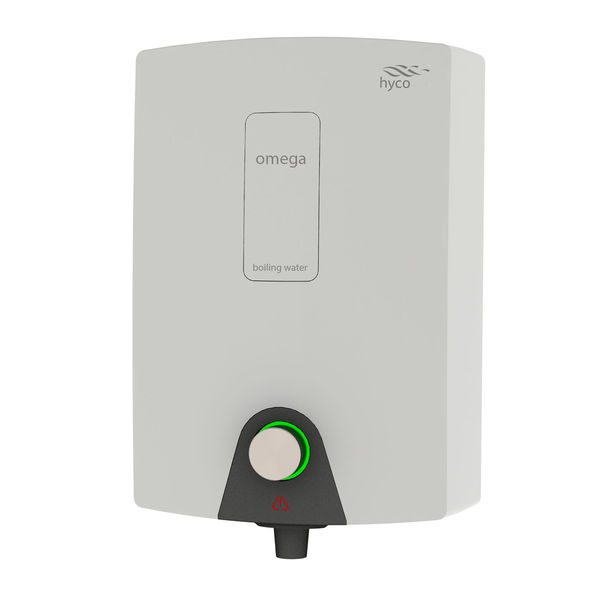

Omega
Wall Mounted Boiling Water Heater
3 and 5 litre
Usage:
The Omega is a practical, stylish wall mounted unit that provides instant boiling water for preparing hot drinks in the workplace. The sleek, ergonomic design with curved lines gives a contemporary look whilst the robust, durable design specification makes it an essential appliance in the work environment.
Click here to view our Wall Mounted Boiling Water Key Points Card
- Features
- Technical Specifications
- Data Tables
Features
Features
• Designed and assembled in the UK
• 2.84 kW gives fast heat up time and high recovery rate
• Time saving – provides instant hot water so no need to wait for the kettle to boil
• Space saving – frees up worktop space by eliminating the need for a kettle
• Energy efficient - standing losses 23 W
• Status ring on base of control valve to indicate ready or heating (green/ red LED)
• Robust, heavy duty ceramic control valve
• Cool touch control valve and water outlet reduces heat losses
• Simple to use and easy to install
• Durable, high impact and easy to clean white ABS case
• Sophisticated electronics maintain a constant supply of hot water - even when the unit is automatically re-filling after heavy usage
• Autocalibration for optimal temperature
• 1 year on-site warranty as standard
• 3 year on-site warranty available on request at additional cost
• It is highly recommended that a filter system is fitted to protect against scale build up. Units may need to be de-scaled regularly. Scale damage is not covered by warranty (see Drinking Water Filters).
Technical Specification
Outer Casing
Easy clean high impact
Polycarbonate/ ABS
Heating Element
2.84 kW incoloy - sheathed type element
Thermostat
Electronic to control water up to boiling point
Water Tank
Stainless steel
Insulation
EPP (expanded polypropylene)
Filter System
Optional extra - highly recommended.
See Drinking Water Filters page for filter options.
IP Rating
IPX0
Recovery Rate
Recovery rate 176 cups/ 117 cups per hour for all models based on 167 ml cup size and 250ml mug.
Installation
Install over a draining board, or work top fitted with a drip tray.
At least 110mm clearance must be left above and below the unit to allow later removal of the jacket for service.
Plumbing
Must be installed by a suitably qualified person.
Minimum water pressure 1 bar.
Maximum water pressure 10 bar.
Water Connection
Inlet/ Outlet 2 x 15mm compression.
1 x tundish recommended.
Electrical Connection
Installation must comply with current IEE regulations.
The product should be connected to the fixed wiring of the property via a double pole fused spur with a minimum break capacity of 13 amps.
Cable pre-wired (1.5m), to the bottom left.
Maintenance
It is recommended the unit is descaled every 6 months.
Drain in base of unit facilitates de-scaling.
Approvals
CE, UKCA, WRAS
Standard Warranty
1 year on-site warranty as standard.
2 year parts or replacement warranty.
3 year on-site warranty available at additional cost.
Data Tables
| Product Code | Capacity (litres) | Initial Draw Off (cup/ mugs)* | Heat Up Time (mins) | Standing Loss (kWh/day) |
|---|---|---|---|---|
| OMEG3 | 3 | 18/ 12 | 6 | 0.55 23 W |
| OMEG5 | 5 | 30/ 20 | 10 | 0.55 23 W |
*Initial draw off based on 167 ml cup and 250 ml mug

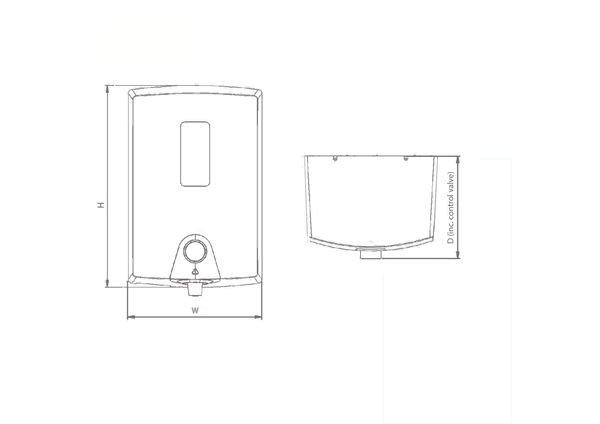

| Product Code | Height (mm) | Width (mm) | Depth (mm)* | Weight (kg) Empty | Weight (kg) Full |
|---|---|---|---|---|---|
| OMEG3 | 500 | 330 | 255 | 7 | 10 |
| OMEG5 | 500 | 330 | 255 | 7 | 12 |
*Depth includes front control. Distance of water outlet from wall is 180mm.
