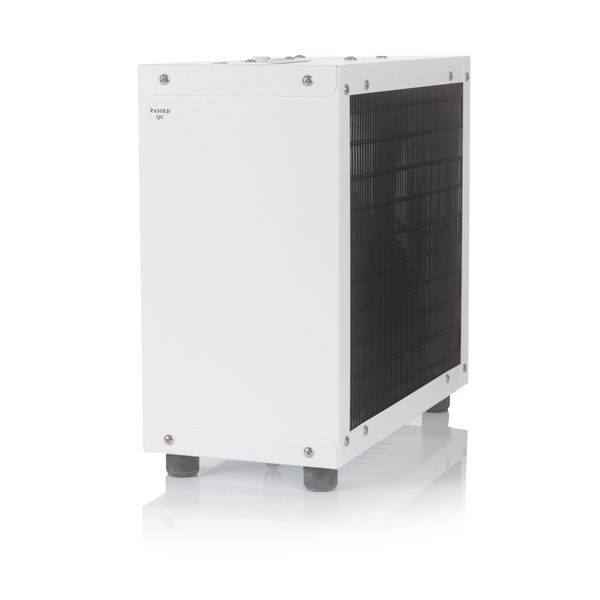

Sapphire Water Chiller
Undersink 140 W, chill capacity 14 L/H
Usage:
Undersink water chiller to be used with a counter mounted tap and filter to provide instant, high quality chilled drinking water.
- Features
- Technical Specifications
- Data Tables
Features
Features
• Add to your Zen Spa package to provide boiling and chilled water through your 2 in 1 Zen Spa tap
• Team with one of our Zen Ice or Crystal Pure drinking water taps for chilled drinking water solutions
• Designed to fit in a standard kitchen undersink cupboard
• In office environments avoids the need for space to be taken up by a floor standing chiller unit
• Simple to use
• Chill capacity 14 litres or 80 glasses per hour (glass 167 ml)
• 2 litres immediate draw off
• Flow rate 2 l/pm when chiller used with Zen tap and connected to F1T filter
• Plumbed in system gives reduced costs over bottle fed coolers - connects directly to the mains water supply
• Never run out of water
• Chilled water temperature adjustable from 8°C to 12°C
• All our taps for use with the Sapphire chiller are suitable for filling sports bottles and carafes
• Consider the Zen Font with Drain for a stylish sleek solution when mounting the tap over a sink is not possible or desired (see Zen Font with Drain)
Technical Specification
Outer Casing
White powder coated steel
Capacity
80 glasses per hour (based on 167 ml glass)
Maintenance
Sanitise every 3 - 6 months.
Change drinking water filter approximately every 6 months.
See product instructions for full maintenance requirements.
Refrigerant Type
R290/ 25g
IP Rating
IP20
Power (kW)
0.14
Current (amps)
0.6
Installation
Chilling requires the ambient installation environment temperature to be between 10°C and 38°C.
Plumbing
Must be installed by a suitably qualified person.
Minimum water pressure 1 bar.
Maximum water pressure 3 bar. If higher than this a pressure reducing valve is required.
Electrical Connection
Supplied with a pre-wired (1.85 m) black kettle lead cable BS plug.
Class l
Approvals
CE, UKCA
Standard Warranty
2 years parts or replacement warranty.
Data Tables
| Product Code | Chill Capacity (litres/hour) | Glasses per hour (167ml glass) | Power (kW) |
|---|---|---|---|
| SAPUC2 | 14 | 80 | 0.14 |

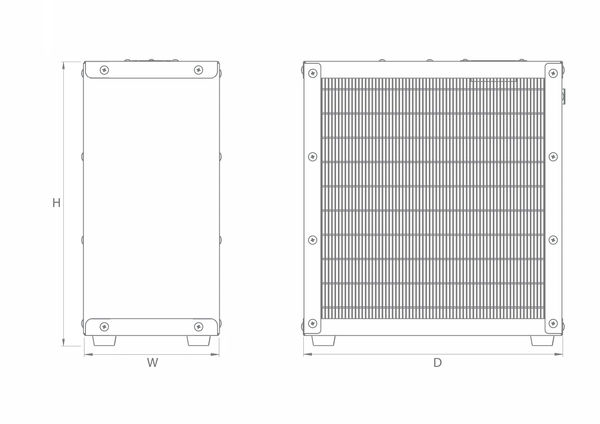

| Product Code | Height (mm) | Width (mm) | Depth (mm) | Weight (kg) |
|---|---|---|---|---|
| SAPUC2 | 360 | 180 | 380 | 11.1 |
