Arc
1.25 kW Automatic
Energy Efficient
Usage:
The Arc hand dryer seamlessly combines style and functionality. Where you require excellent all round value, versatile application and high performance, this is the ideal solution for you. The quick dry time and low sound level ensures high performance quality is combined with compact, durable design specification. Suitable for many public washroom applications including restaurants, shops and shopping centres, office buildings, pubs, motorway services, factories and supermarkets.
- Features
- Technical Specifications
- Data Tables
Features
Features
• Modern, intelligent, hygienic design
• Exceptional value for money
• High speed gives fast hand drying times
• Saves energy relative to traditional hand dryers from reduced drying times
• Integral air filter
• UV sterilisation technology
• Low 1.25 kW power rating
• Intelligent temperature control - heating element switches off when room temperature is above 25°C reducing power consumption to 0.55 kW
• High quality stainless steel case

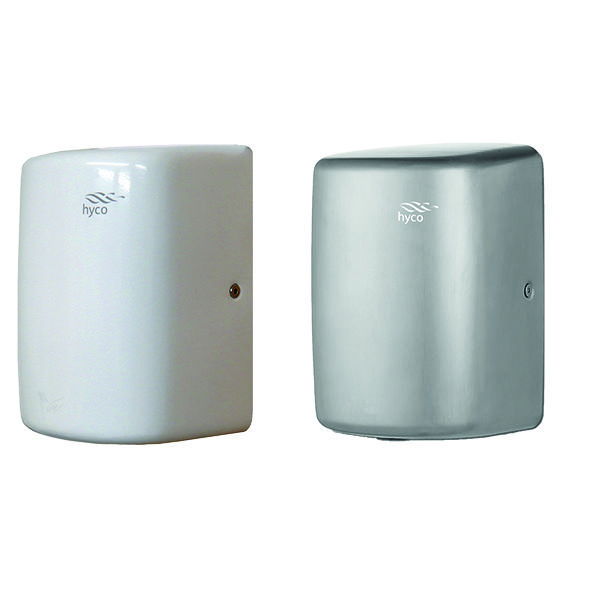

• Available in white or brushed stainless steel
• Vandal resistant
• Blue dry zone indicator
Technical Specification
Outer Casing
Stainless steel
Heating Element
700 W
Motor
550 W
Carbon Brush
Current
5 amps
Air Speed
60 m/s
Operation
Touch free automatic.
Safety
Overheat temperature protection.
Safety timer prevents continuous running.
IP Rating
IPX1
Installation
Full fixing pack supplied.
Cable entry in the lower left corner.
Optional concealed entry if desired.
Electrical Connection
Installation must comply with current IEE Regulations.
The product should be connected to the fixed wiring of the property via a double pole fused spur with a minimum break capacity of 13 amps.
Class I
Approvals
CE, UKCA
Standard Warranty
3 year parts or replacement warranty.
Data Tables
power consumption 5.2 - 6.9 kWh per 1000 dries
| Product Code | Finish | Power (kW) | Sound Level (dB) | Dry Time (seconds) | Air Speed (m/s) |
|---|---|---|---|---|---|
| ARCW | White | 1.25 | 72 | 15 - 20 | 60 |
| ARCBSS | Brushed SS | 1.25 | 72 | 15 - 20 | 60 |

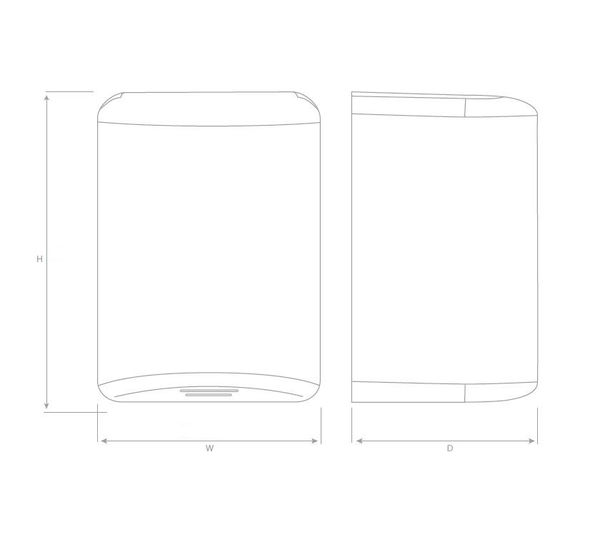

| Product Code | Height (mm) | Width (mm) | Depth (mm) | Weight (kg) |
|---|---|---|---|---|
| ARCW | 255 | 173 | 150 | 3.2 |
| ARCBSS | 255 | 173 | 150 | 3.2 |
