Ellipse
1.55 kW Automatic
Energy Efficient
Usage:
Suitable for many public washroom applications including restaurants, shops and shopping centres, office buildings, pubs, motorway services, factories and supermarkets. The Ellipse is one of most energy efficient hand dryers.
- Features
- Technical Specifications
- Data Tables
Features
Features
• Modern stylish design
• High speed giving fast drying times
• Saves energy relative to traditional hand dryers from reduced drying times
• Hygienic automatic operation reduces the risk of spreading germs
• 1.55 kW power rating
• Option to reduce power setting to 0.6 kW on installation to increase energy efficiency
• Dry Zone LED indicator gives visible indication to ensure hands are placed in the warm air stream
• Dual colour LED sensor indicator (green: on, red: off)
• Durable metal vandal resistant case

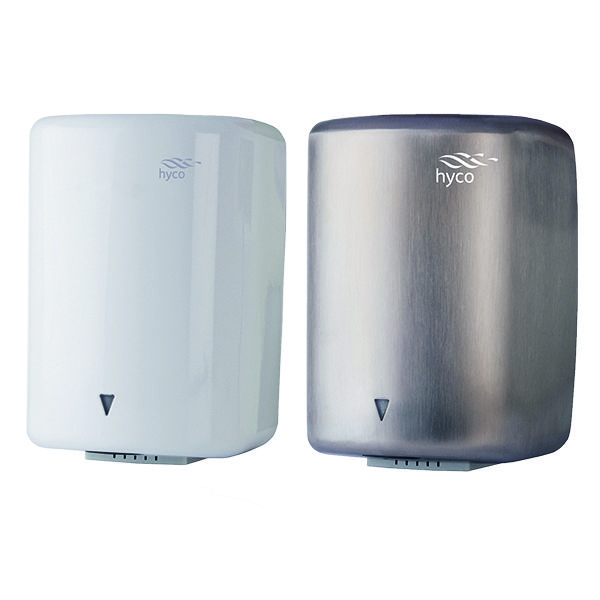

• Available in white or stainless steel finish
• Previously JET1600
Technical Specification
Outer Casing

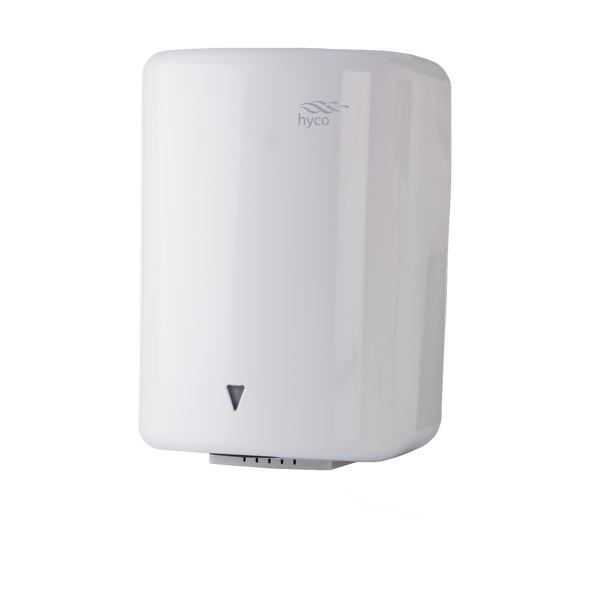

ELLW - white enamel steel

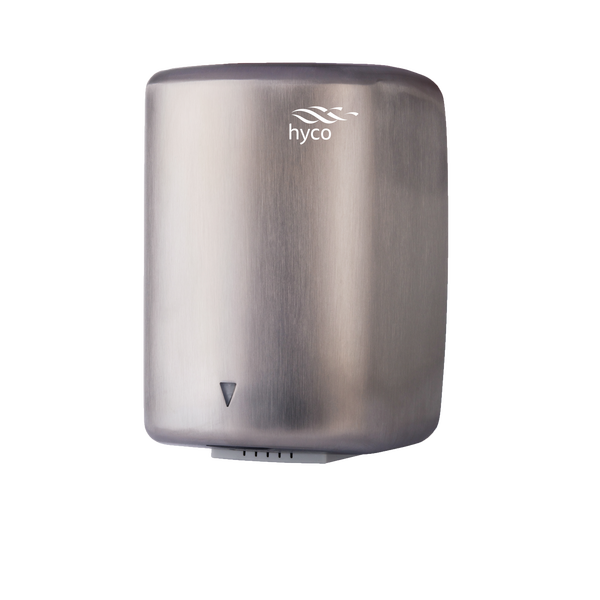

ELLBSS - brushed stainless steel
Heating Element
800 W - Option to switch element off
Motor
600 - 750 W (adjustable)
Carbon Brush
12,000 - 18,000 RPM (adjustable)
Current
7 amps
Air Speed
75 - 100 m/s (adjustable)
Air Volume
87 - 116 m3/h (adjustable)
Operation
Touch free automatic
Safety
Overheat temperature protection.
Safety timer prevents continuous running.
IP Rating
IP23
Installation
Full fixing pack supplied.
Cable entry to the left at the base of the unit.
Electrical Connection
Installation must comply with current IEE Regulations.
The product should be connected to the fixed wiring of the property via a double pole fused spur with a minimum break capacity of 13 amps.
Class I
Approvals
CE, UKCA
Standard Warranty
3 year parts or replacement warranty.
Data Tables
power consumption 2.5 - 4.4 kWh per 1000 dries
| Product Code | Finish | Power (kW) | Sound Level (dB) | Dry Time (seconds) | Air Speed (m/s) |
|---|---|---|---|---|---|
| ELLW | White | 0.6 - 1.55 | 70 - 74 | 10 - 15 | 75 - 100 |
| ELLBSS | Brushed SS | 0.6 - 1.55 | 70 - 74 | 10 - 15 | 75 - 100 |

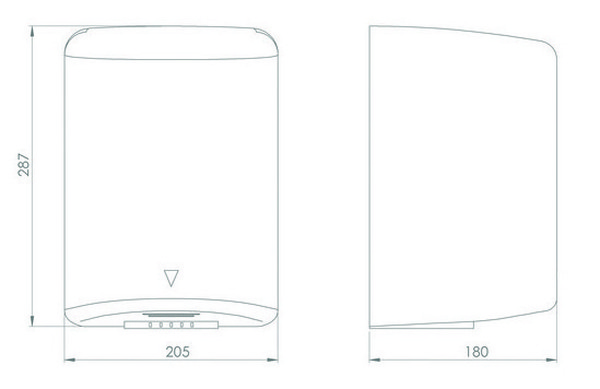

| Product Code | Height (mm) | Width (mm) | Depth (mm) | Weight (kg) |
|---|---|---|---|---|
| ELLW | 287 | 205 | 180 | 5.8 |
| ELLBSS | 287 | 205 | 180 | 5.8 |
