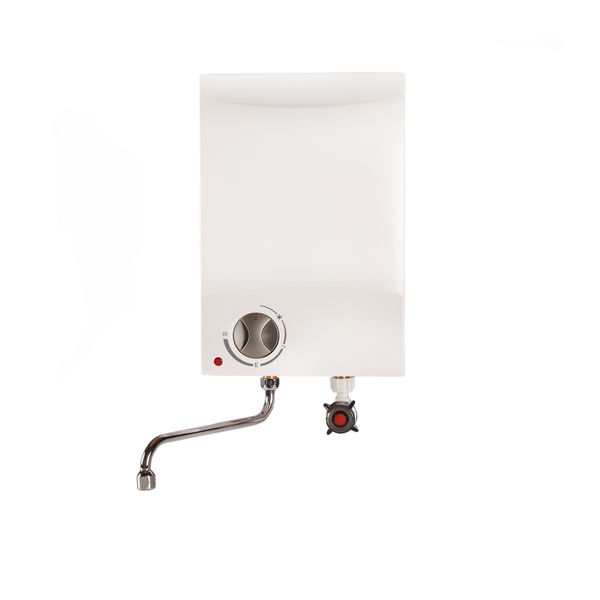

Handyflow Oversink
Vented Point of Use
5 litres
Usage:
Ideal for occasional use light dish washing at a single kitchen sink in the workplace, for example portable buildings, offices, shops, workshops, garages and other small commercial premises.
Click here to view our Handyflow Key Points Card
- Features
- Technical Specifications
- Data Tables
- Spares
- Energy Efficiency
Features
Features
• Open outlet heater to supply hot water to a single sink
• Ideal when economy and ease of installation are the key priorities
• Stylish design and slimline profile – depth only 7” (180mm)
• Comes complete with tap and chrome spout
• Thermal cut-out can be re-set rather than requiring to be replaced
• 2.0 kW element
• External temperature control with frost protection setting
• Neon element on indicator
• Wall fixing bracket included and cable pre-wired (1m) – saves time on installation
• No need for expansion vessel, relief valve or reducing valve
Technical Specification
Outer Casing
Easy clean, high impact plastic
Heating Element
Copper-sheathed type element
Thermostat
Capillary type adjustable to approx. 80⁰C
E setting approx. 55⁰C
Water Tank
Polypropylene
Insulation
High density polystyrene CFC free
Spout
Length 10” (250mm)
Safety
Open outlet non-pressurised system, supplied tap and spout must be used.
Safety re-settable thermal cut out. Frost protection setting when power is switched on.
Heating Cycle
It is normal for the spout on this type of unit to drip slightly during the heating cycle, caused by the water expanding as it heats up.
IP Rating
IP24
Installation
Must be sited above a sink using the wall fixing bracket supplied, with the spout and tap located at the bottom of the unit.
Plumbing
Must be installed by a suitably qualified person.
Minimum water pressure 0.3 bar.
Maximum water pressure 8.0 bar.
Water Connection
Inlet valve/tap 1 x 15mm compression.
Outlet 1 x chrome plated brass spray arm.
Fittings required (not supplied): none.
ONLY USE THE FITTINGS SUPPLIED SO THAT THE UNIT IS NOT PRESSURISED.
Electrical Connection
Installation must comply with current IEE regulations.
The product should be connected to the fixed wiring of the property via a double pole fused spur with a minimum break capacity of 13 amps.
Cable pre-wired (1m).
Approvals
CE, UKCA
Standard Warranty
1 year parts or replacement warranty.
Data Tables
| Product Code | Capacity (litres) | Power (kW) | Heat Up TIme (mins) * | Standing Loss (kWh/day) |
|---|---|---|---|---|
| HF05LM | 5 | 2.0 | 6 | 0.32 |
* Minimum theoretical heat up time for 70% tank capacity from 10°C to 60°C

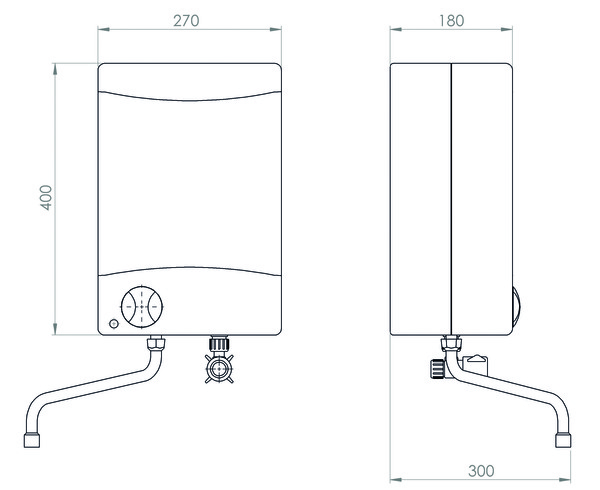

| Product Code | Height (mm) | Width (mm) | Depth (mm) | Weight Empty (kg) | Weight Full (kg) |
|---|---|---|---|---|---|
| HF05LM | 400 | 270 | 180 | 2.9 | 7.9 |
Spares
Spare parts are available through our stockists.
A list of spare parts available for our current range is shown below.
For further help or advice please contact our customer services team on 01924 225 200 - we can usually help, for example, help diagnosing which part you need, help if you require spare parts for obsolete models or if you need fast delivery.
| Product Code | Description | Spare Parts for Product Code |
|---|---|---|
| HF05LQ_ELEMENT | Handyflow 2.0 kW element | HF05LM |
| HF05LQCUT_OUT | Handyflow thermal cut-out | HF05LM |
| HF05LQTHERMO | Handyflow thermostat | HF05LM |
| HFDIALQ | Handyflow thermostat control knob | HF05LM |
| HF05BRKTQ | Handyflow wall mounting bracket | HF05LM |
| SPT8CHRQ | Handyflow oversink chrome spout 8'' | HF05LM |
| HDYTAP | Handyflow oversink tap | HF05LM |
Energy Efficiency
The Energy Related Products (ErP) Directive and Energy Labelling Directive require that from September 2015 all water heaters in scope meet minimum energy performance criteria and have energy labels which provide the energy ration of the product. The classifications range from A++; this being the most efficient and coded in green to a rating of G; this being less efficient and coded in red.
Such ratings provide transparency of efficiency and a comparable benchmark for water heating products, as standardised European Energy Labels are used.

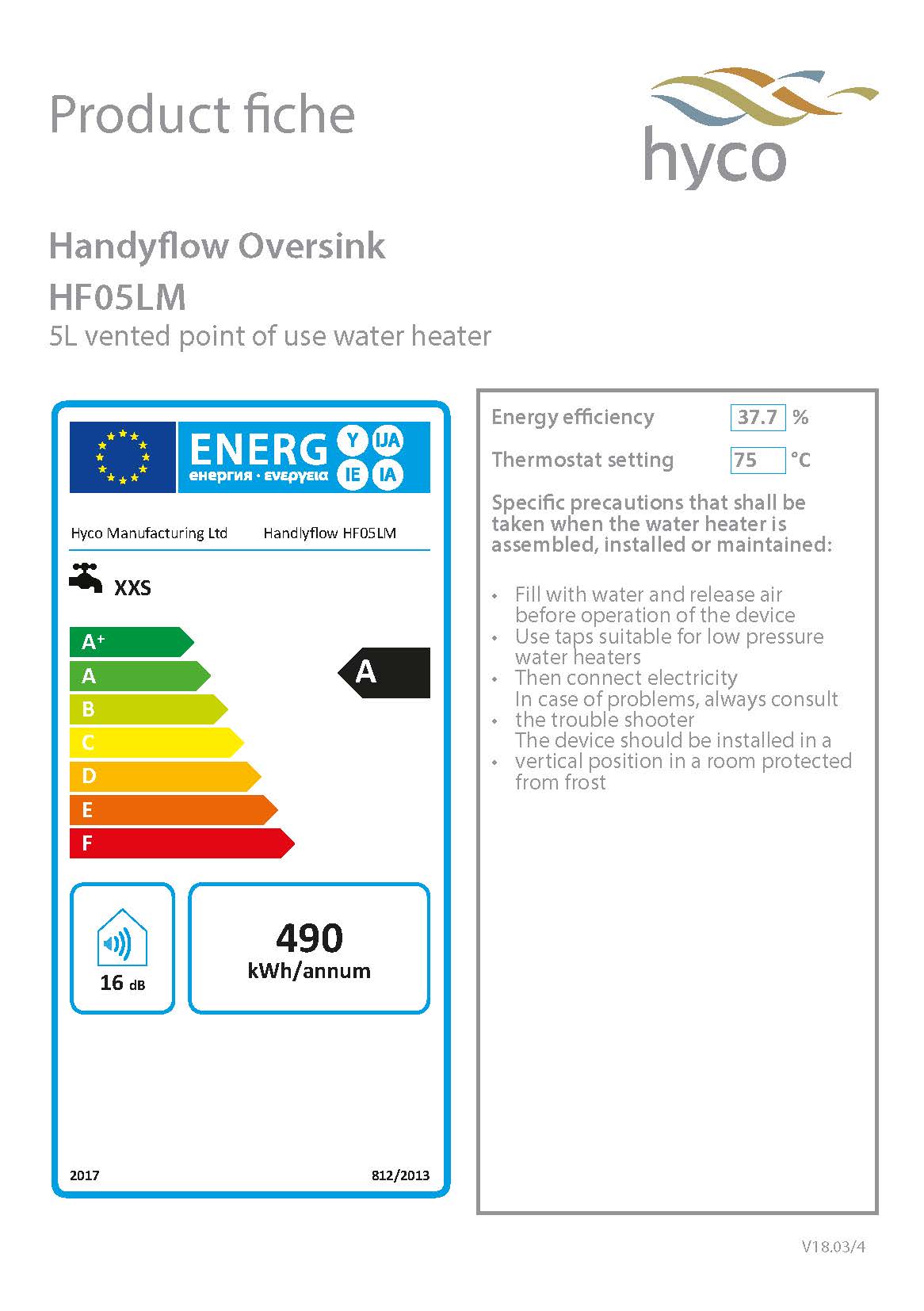

This website contains the energy class for all relevant water heating products. The full energy label and product fiche information for the Handyflow Oversink can be found below.
