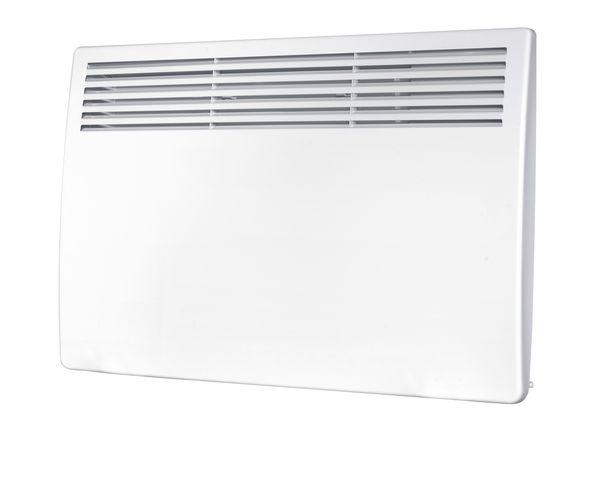

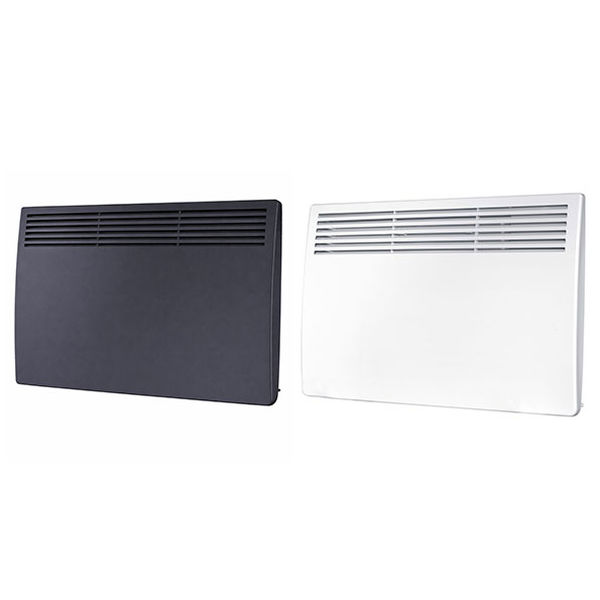

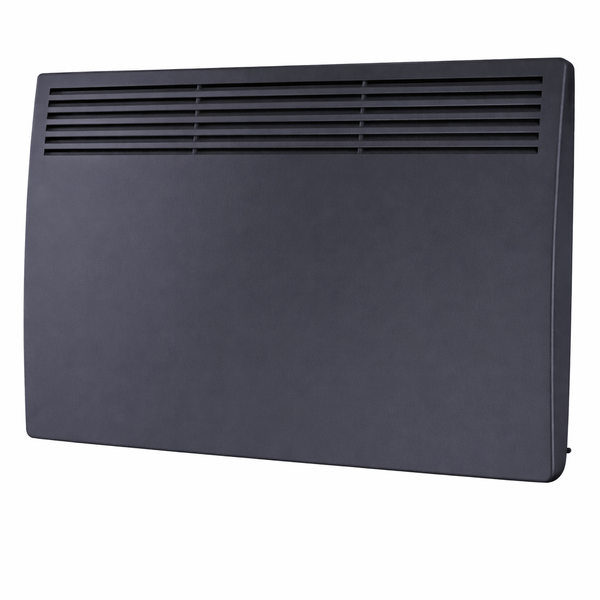

Accona
Timer Panel Heater
0.5, 1.0, 1.5, 2.0 and 2.4 kW
Usage:
Ideal for a wide range of fixed installation heating applications in the home and office environment.
- Features
- Technical Specifications
- Data Tables
Features
Features
Technical Specification
Outer Casing
Powder coated steel
Element
Aluminium x-shape heating element
Controls
Digital controls and screen
Louvres
0.5 and 1.0 kW have two columns of louvres
1.5 kW has three columns of louvres
2.0 kW and 2.4 kW have four columns of louvres
Safety
Overheat temperature protection.
IP Rating
IP24
Installation
Wall mounting kit included and must be used.
Electrical Connection
Installation must comply with current IEE regulations.
The product should be connected to the fixed wiring of the property via a double pole fused spur with a minimum break capacity of 13 amps.
Cable pre-wired (1.8m), white cable, entry to the top right of the unit.
Class I
Approvals
CE, UKCA
Standard Warranty
2 year parts or replacement warranty.
Data Tables
| Product Code | Power (kW) | Timer | Current (amps) |
|---|---|---|---|
| AC500T | 0.5 | Yes | 2.2 |
| AC1000T | 1.0 | Yes | 4.3 |
| AC1500T | 1.5 | Yes | 6.5 |
| AC2000T | 2.0 | Yes | 9.0 |
| AC2400T | 2.4 | Yes | 10.4 |

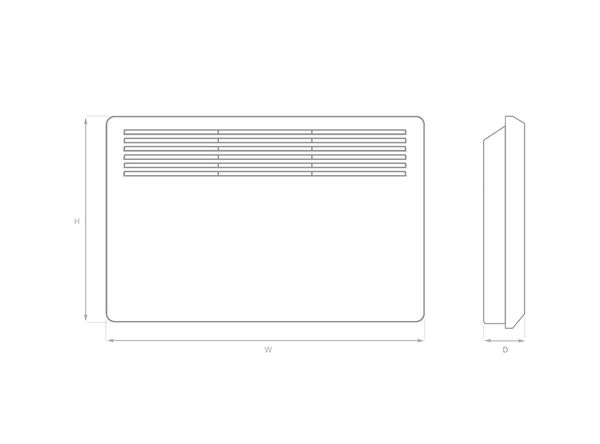

| Product Code | Height (mm) | Width (mm) | Depth (mm)* | Weight (kg) |
|---|---|---|---|---|
| AC500T | 400 | 460 | 90 | 3.4 |
| AC1000T | 400 | 460 | 90 | 3.4 |
| AC1500T | 400 | 595 | 90 | 4.7 |
| AC2000T | 400 | 830 | 90 | 5.7 |
| AC2400T | 400 | 950 | 90 | 7.4 |
*Depth excludes bracket. For depth including bracket add 30 mm.
