Alize
S Shaped Towel Rail
50 and 80 W
Usage:
An electric towel rail for use in bathrooms to provide dry warm towels.
- Features
- Technical Specifications
- Data Tables
Features
Features
• Traditional s shaped design
• Available in 50 W (chrome) and 80 W (white)
• Rapid heat up
• Robust mounting brackets included
• Lightweight and easy to install
Technical Specification
Outer Casing

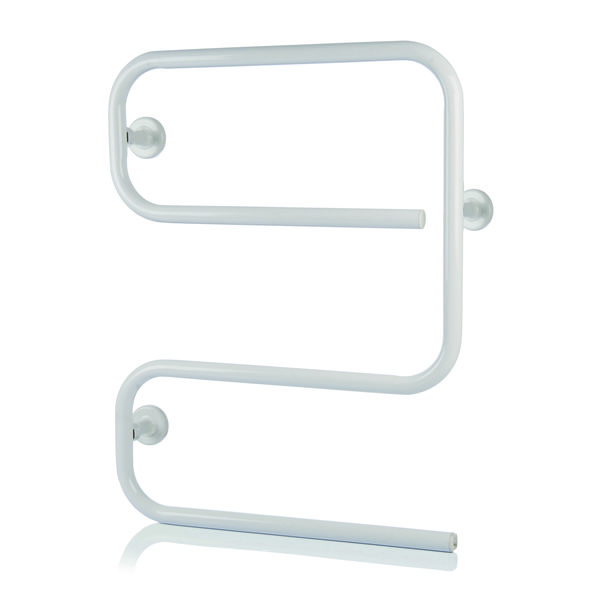

AL80SW – white enamel coated steel

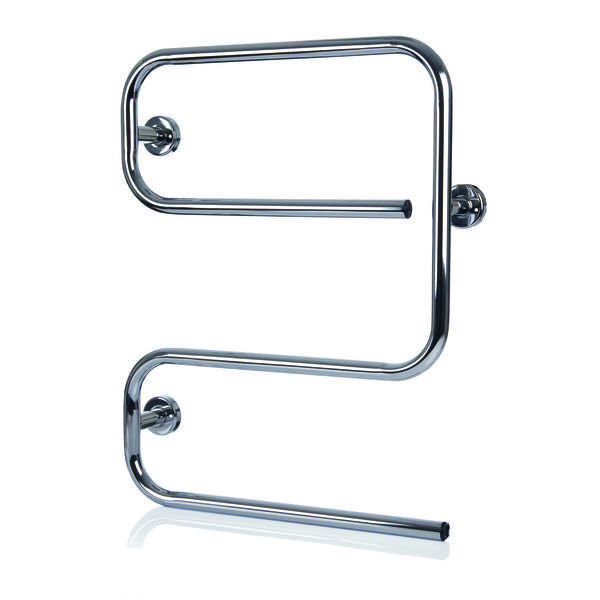

AL50SC – chrome plated steel
Controls
None
Safety
Overheat temperature protection.
IP Rating
IPX4
Installation
Wall mounting kit included and must be used.
Electrical Connection
Installation must comply with current IEE regulations.
The product should be connected to the fixed wiring of the property via a double pole fused spur with a minimum break capacity of 13 amps.
Cable pre-wired (1.5m), white cable entry to the bottom right of the towel rail.
Class I
Approvals
CE, UKCA
Standard Warranty
1 year parts or replacement warranty.
Data Tables
| Product Code | Power (W) | Finish | Current (amps) |
|---|---|---|---|
| AL80SW | 80 | White | 0.3 |
| AL50SC | 50 | Chrome | 0.2 |

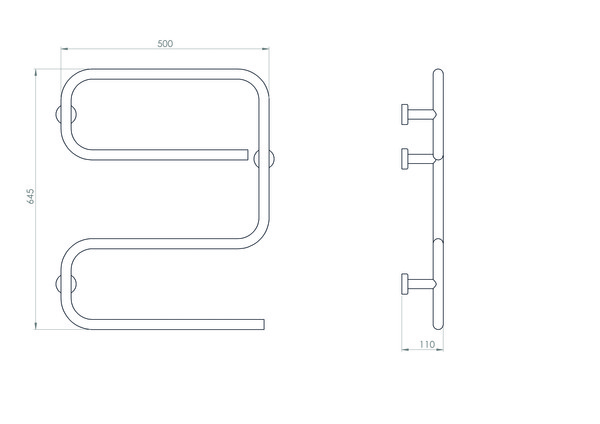

| Product Code | Height (mm) | Width (mm) | Depth (mm) | Weight (kg) |
|---|---|---|---|---|
| AL80SW | 645 | 500 | 110 | 1.6 |
| AL50SC | 645 | 500 | 110 | 1.6 |
