Aquilo 40 W
Aquilo 80 W
Aquilo 90 W

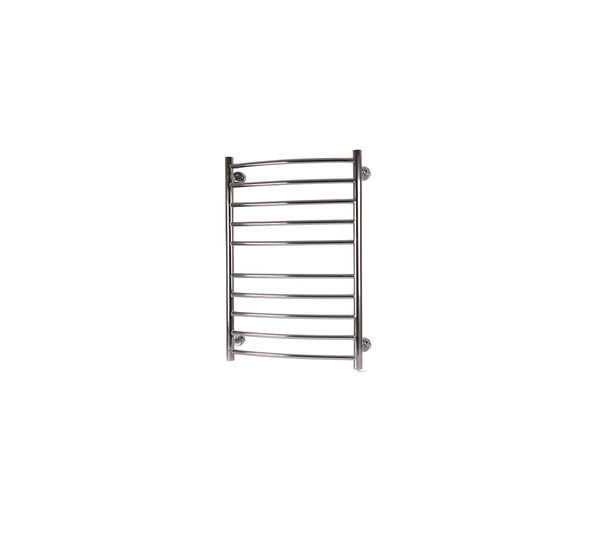

Aquilo LST Towel Rail
Curved Ladder Style
40, 80 and 90 W
Usage:
For use in bathrooms to provide dry warm towels.
Low surface temperature electric towel rails are ideal for applications where safety is paramount such as schools, hospitals, retirement homes and student accommodation.
- Features
- Technical Specifications
- Data Tables
Features
Features
• Stylish and modern curved ladder design
• Low surface temperature of below 43°C
• Low power rating reduces energy consumption
• High quality stainless steel
• Easy to clean finish
• Lightweight and easy to install
• Slimline profile
• Rapid heat up
• Robust mounting brackets included
Technical Specification
Outer Casing
Stainless steel, high polish
Controls
None
Safety
Overheat temperature protection.
IP Rating
IPX4
Installation
Wall mounting kit included and must be used.
Electrical Connection
Installation must comply with current IEE regulations.
The product should be connected to the fixed wiring of the property via a double pole fused spur with a minimum break capacity of 13 amps.
Cable pre-wired (1.5m), white cable entry to the bottom right of the towel rail.
Class I
Approvals
CE, UKCA
Standard Warranty
1 year parts or replacement warranty.
Data Tables
| Product Code | Power (W) | Timer | Current (amps) |
|---|---|---|---|
| AQ40LC | 40 | No | 0.2 |
| AQ80LC | 80 | No | 0.4 |
| AQ90LC | 90 | No | 0.4 |

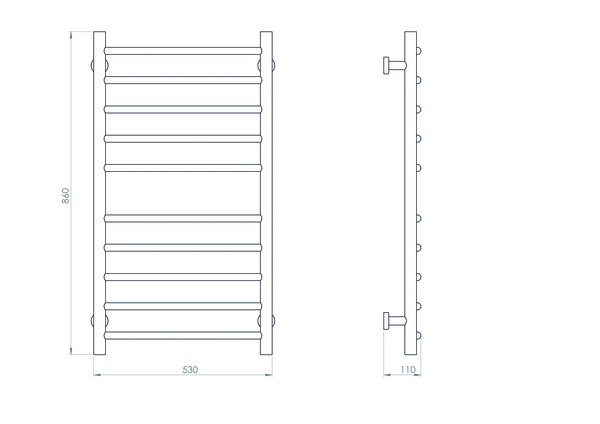

| Product Code | Height (mm) | Width (mm) | Depth (mm) | Weight (kg) |
|---|---|---|---|---|
| AQ40LC | 720 | 400 | 120 | 2.4 |
| AQ80LC | 860 | 530 | 130 | 2.9 |
| AQ90LC | 1020 | 600 | 140 | 4 |
