Ariano
Timer Glass Front Panel Heater
1.0 and 2.0 kW
Usage:
Suitable for a wide range of fixed installation heating applications in the home and office environment.
- Features
- Technical Specifications
- Data Tables
Features
Features

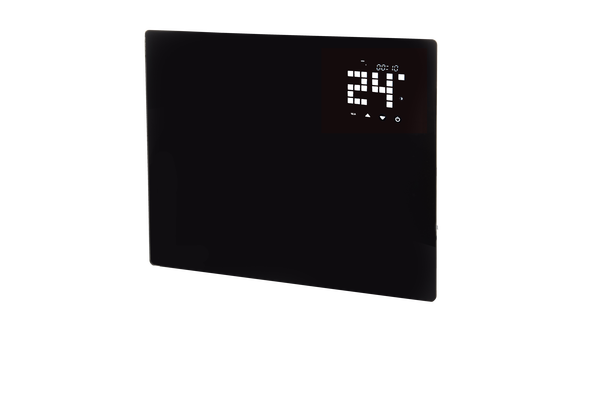

• Stylish flat glass fronted panel heater
• Statement black glass with curved corners
• Ecodesign compliant
• Available in 1.0 and 2.0 kW models
• 24/7 LCD electronic timer
• Manual or timer operation setting
• Timer configurable in 1 hour slots
• Temperature range 5 - 30°C
• Open window detection to reduce energy wastage
• Power on display
• Element on indicator
• Full or half power setting
• Frost protection setting at 5°C
• Easy to use control panel with remote control
• IP24 splash-proof
• Integrated child lock
• Wall mounted - secure bracket included
• Slimline - depth only 105mm
Technical Specification
Outer Casing
Tempered glass front, powder coated steel case.
Element
Aluminium x-shape heating element
Controls
LED display, touch screen and remote control.
Safety
Overheat temperature protection.
IP Rating
IP24
Installation
Wall mounting points integrated in product case.
Electrical Connection
Installation must comply with current IEE regulations.
The product should be connected to the fixed wiring of the property via a double pole fused spur with a minimum break capacity of 13 amps.
Cable pre-wired (1.8m), black cable, entry to the bottom right of the unit.
Class I
Approvals
CE, UKCA
Standard Warranty
2 year parts or replacement warranty.
Data Tables
| Product Code | Power (kW) | Timer | Current (amps) |
|---|---|---|---|
| AR1000T | 1.0 | Yes | 4.3 |
| AR2000T | 2.0 | Yes | 9.0 |

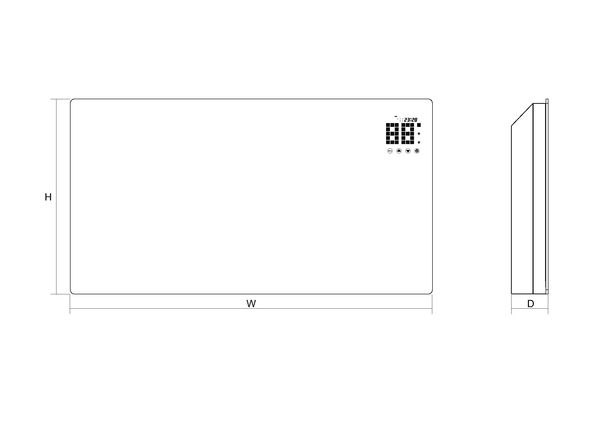

| Product Code | Height (mm) | Width (mm) | Depth* (mm) | Weight (kg) |
|---|---|---|---|---|
| AR1000T | 450 | 515 | 105 | 5.5 |
| AR2000T | 450 | 835 | 105 | 8.4 |
*Depth includes bracket
