Plinth Heater
Programmable Thermostat
Mistral
Plinth Heater supplied with Programmable Thermostat
2.4 kW
Usage:
A good solution to provide heat in a kitchen or similar environments where wall space is restricted. Supplied with a programmable thermostat and 3 fascia finishes: black, white and stainless steel.
- Features
- Technical Specifications
- Data Tables
Features
Features
Plinth Heater
• Plinth heater fits neatly into plinth board beneath kitchen units
• Space saving - no need for a separate radiator
• Durable steel construction

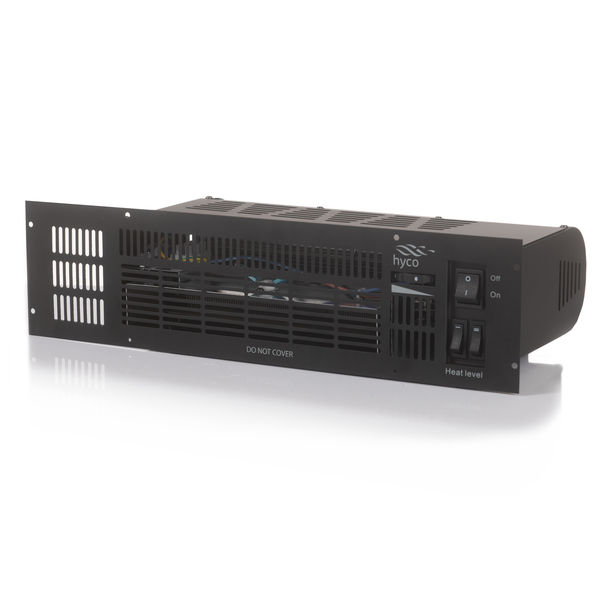

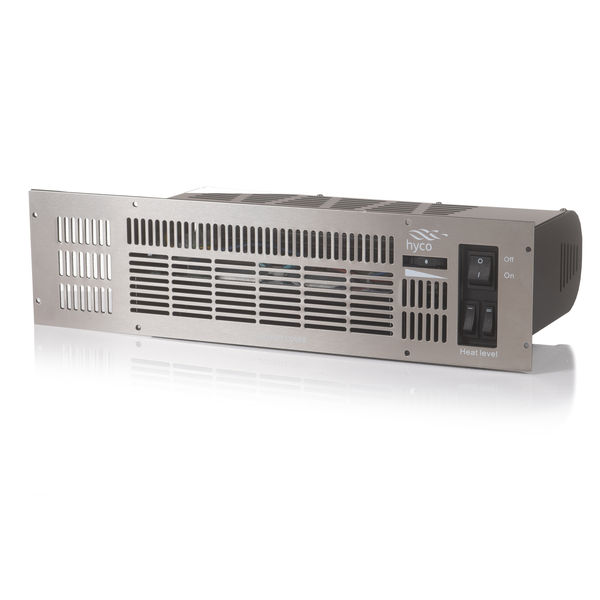

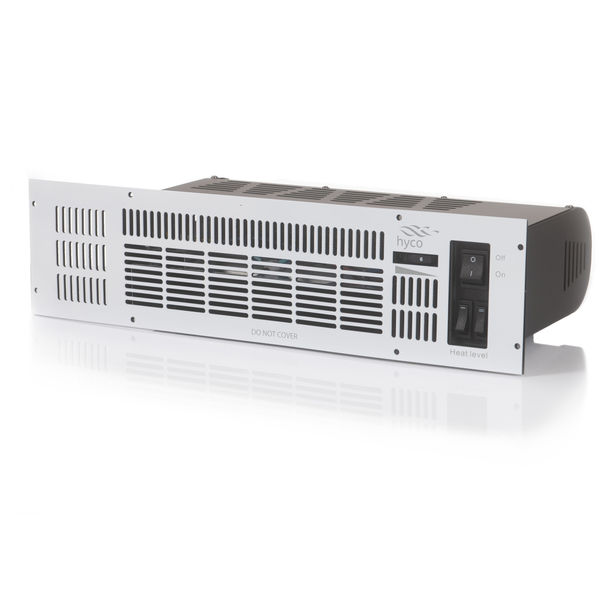

• Plinth heater comes with 3 stylish fascia finishes: black, white or stainless steel
• 2.4 kW power rating
• 3 power settings, 0.8 kW, 1.6 kW and 2.4 kW
• Cable prewired (2m) for versatile installation options
• Smooth and quiet operation
• Simple to use
• Overheat protection
• Fits in a standard 140 or 150 mm plinth, min plinth height 130 mm
• Fan only setting for air circulation in summer months

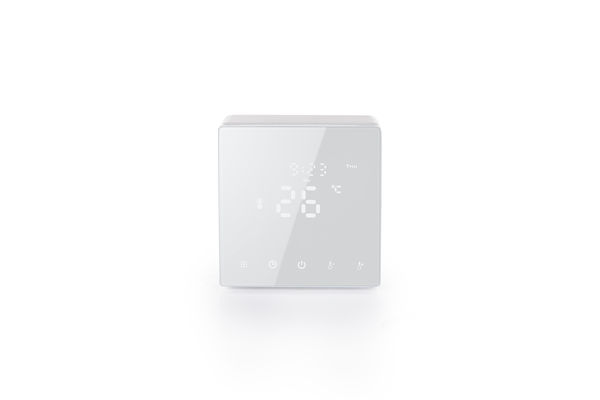

Programmable Thermostat
• Programmable thermostat fitted on wall above worktop allows convenient touch screen control
• Slimline profile fits in standard pattress
• Manual or program operation setting
• Program configurable in 6 time periods per day
• Open window detection to reduce energy wastage
• Memory recall after power off
Technical Specification
Plinth Heater
Outer Casing
Durable pressed steel
Controls
On/ off switch
3 power settings 0.8 kW, 1.6 kW, 2.4 kW
Thermostat dial
Safety
Overheat temperature protection
IP Rating
IP20
Electrical Connection
Supplied with pre-wired (2 m), cable entry is to the left of the heater.
Class ll
Approvals
CE, UKCA
Standard Warranty
1 year parts or replacement warranty.
Programmable Thermostat
Outer Casing
ABS
Controls
Digital LCD display, touch screen controls.
Temperature display (°C)
Temperature Range
5 - 35°C
IP Rating
IP20
Installation
Wall mounting screws included
Electrical Connection
Installation must comply with current IET wiring regulations.
Compatible with standard pattress.
The product should be connected to the fixed wiring of the property via a suitably rated isolating switch with a contact separation of at least 3 mm in all poles.
Class l
Approvals
CE, UKCA
Standard Warranty
1 year parts or replacement warranty.
Data Tables
| Product Code | Power (kW) | Current (amps) |
|---|---|---|
| ML2400 | 2.4 | 10 |

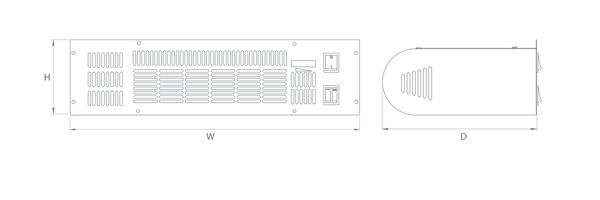

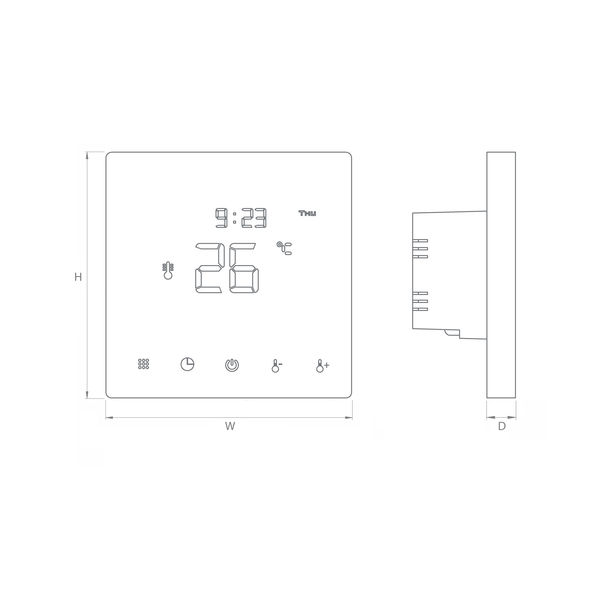

| Product Code | Height (mm) | Width (mm) | Depth (mm) | Weight (kg) |
|---|---|---|---|---|
| ML2400 | 125 | 480 | 215 | 4.7 |
| PT01 | 86 | 86 | 10* | 0.25 |
* Compatible with standard pattress. Back box fitting 26 mm depth, 50 mm height.
