Sahara

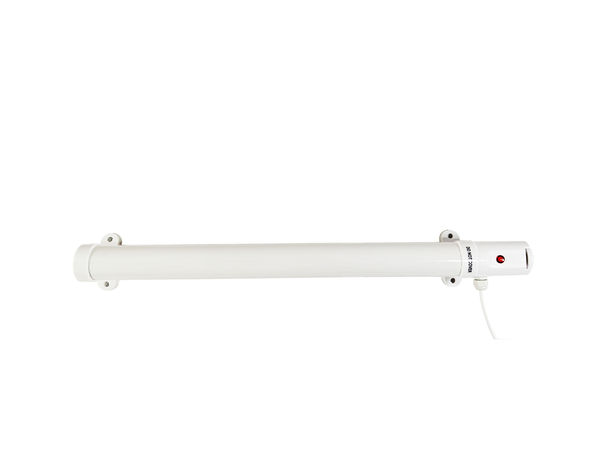

Thermostatic Tubular Heater
1, 2, 3 and 4ft
Usage:
Low output, background source of heat used to support frost protection in applications such as green houses, caravans, conservatories and work shops.
- Features
- Technical Specifications
- Data Tables
- Spares
Features
Features
• Energy efficient heater providing frost protection
• Helps reduce condensation and damp
• IP44
• Robust end fixing brackets (no flimsy plastic clips)
• Available in 1, 2, 3 and 4ft
• Guards are available for all sizes
• Quick and easy installation
• Easy to use
• Adjustable thermostat to control heat output
Technical Specification
Outer Casing
White coated steel tube, white plastic end caps and brackets.
Controls
None
Safety
Overheat temperature protection.
IP Rating
IP44
Installation
Wall or floor mounting kit included and must be used.
Electrical connection
Supplied with a pre-wired (1.5m) white cable BS plug, cable entry to the left of the unit.
Class I
Approvals
CE, UKCA
Standard Warranty
1 year parts or replacement warranty.
Data Tables
| Product Code | Size (ft) | Power (W) | Current (amps) |
|---|---|---|---|
| TH01T | 1 | 45 | 0.2 |
| TH02T | 2 | 80 | 0.4 |
| TH03T | 3 | 135 | 0.6 |
| TH04T | 4 | 180 | 0.8 |
| Product Code | Height (mm) | Width (mm) | Depth (mm) | Weight (kg) |
|---|---|---|---|---|
| TH01T | 90 | 340 | 90 | 0.73 |
| TH02T | 90 | 640 | 90 | 1.12 |
| TH03T | 90 | 950 | 90 | 1.57 |
| TH04T | 90 | 1250 | 90 | 1.99 |
Spares
Spare parts are available through our stockists.
A list of spare parts available for our current range is shown below.
For further help or advice please contact our customer services team on 01924 225 200 - we can usually help, for example, help diagnosing which part you need, help if you require spare parts for obsolete models or if you need fast delivery.
| Product Code | Description | Spare Parts for Product Code |
|---|---|---|
| TH_BRKT | Bracket and fixings for Sahara Tubular Heater | TH01B, TH02B, TH03B, TH04B |
