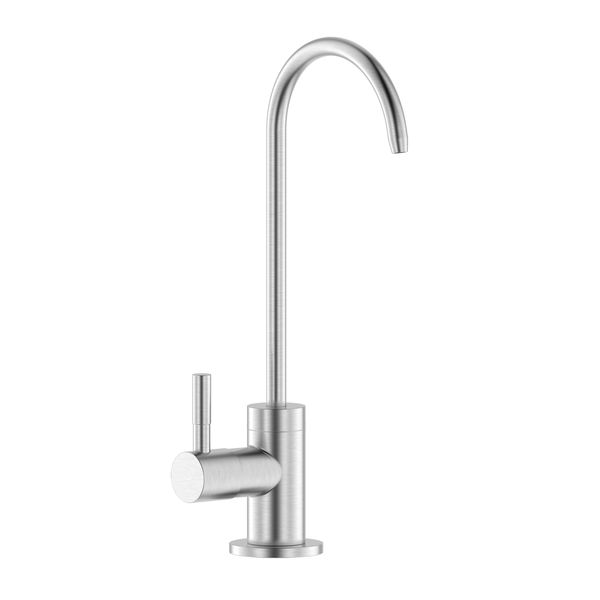

Crystal Pure
Cold Drinking Water Tap
Single Outlet
Usage:
The Crystal Pure drinking water tap is an ideal solution for supplying filtered cold (ambient) or chilled water. The tap can be used with the Zen Font with Drain when connection to a standard sink is not available.
- Features
- Technical Specifications
- Data Tables
Features
Features
• Stylish brushed stainless steel finish
• Suitable for filling sports bottles and carafes
• Instant high quality filtered drinking water. Filter and installation kit supplied (F1T) (see Drinking Water Filters).
• 360° swivel tap
• 1/4 turn adjustable lever
• Single outlet tap to provide any one of cold (ambient) or chilled drinking water
• Connect your Crystal Pure tap directly to the mains cold water supply for a low cost filtered cold (ambient) only drinking water option
• Team your Crystal Pure tap with our Sapphire Undersink Chiller if you want to provide chilled water (see Sapphire Undersink Chiller)
Technical Specification
Outer Casing
Stainless steel, brushed stainless steel finish
Installation
Required hole for mounting the tap minimum 12 mm maximum 35 mm
Fits in a standard sink.
Sink/ counter top up to 40 mm thick.
Plumbing
Must be installed by a suitably qualified person.
Supplied with all fittings required including adaptors to facilitate connection to 15 mm copper pipe.
Standard Warranty
1 year parts or replacement warranty.
Data Tables
| Product Code | Tap Type | 360° Swivel | Reach (mm) |
|---|---|---|---|
| CPURE | Single Outlet | Yes | 140 |
| Product Code | Height (mm) | Width (mm) | Depth (mm) | Weight (kg) |
|---|---|---|---|---|
| CPURE | 290 | 190 | 50 | 0.7 |
