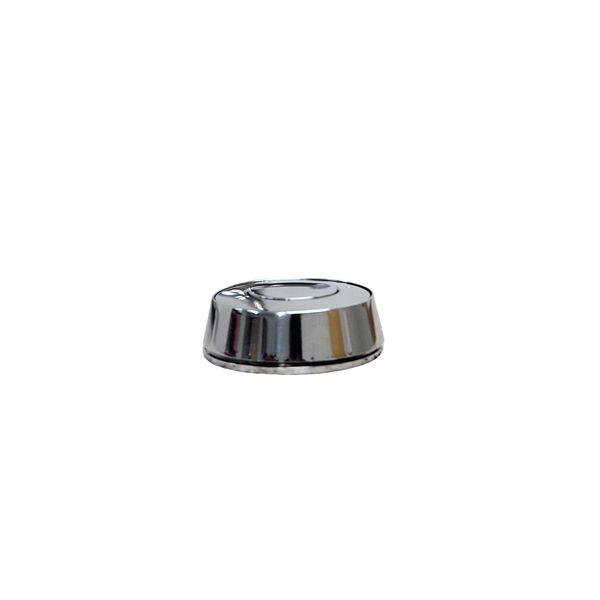

Zen Crossover Valve
Use to create a 4 in 1 tap
Usage:
The elegant Zen Crossover Valve can be used to add filtered cold drinking water to the Zen Life or any kitchen mixer tap. Finished in polished chrome, brushed nickel or black the Crossover Valve will sit on the worktop near your tap and allow you to choose between mains cold and filtered drinking water.
This multipurpose valve could also be used with any tap to choose between two cold water options.
- Features
- Technical Specifications
- Data Tables
Features
Features
• Elegant counter mounted Crossover Valve
• Use with the Zen Life to create a 4 in 1 tap - hot & cold mixer, boiling and filtered cold
• Smooth, ergonomic operation
• Efficient - only filter the water you are going to drink
• Maintains higher flow rate mains cold for washing up
• Filtered drinking water has a lower flow rate
• Comes with drinking water filter (F1T) (See Drinking Water Filters) which provides 1 micron particle filtration
• Installation kit included
• Simple to use and easy to install
• Not suitable for boiling water
• Sits on the worktop near your tap
• Polished chrome in stock – other finishes special order with longer lead time
Technical Specification
Controls
To change water sources dispensed from the tap, turn the dial to the source required.
Installation
Required hole diameter for mounting valve 35 - 38mm. Sink/ counter top up to 60mm thick.
Installation kit and filter (F1T) provided.
Flow Rates
Mains water supply normally 5 l/m (dependent on incoming main).
Filtered cold 1.9 l/m.
Standard Warranty
2 years parts or replacement warranty.
Data Tables
| Product Code | Finish |
|---|---|
| ZENCX | Polished chrome |
| ZENCXBN | Brushed nickel |
| ZENCXBK | Black |
| Product Code | Diameter (mm) | Depth above worktop (mm) |
|---|---|---|
| ZENCX (all finishes) | 50 | 15 |
