Prism
0.9 kW Automatic
Energy Efficient
Usage:
Suitable for many public washroom applications including restaurants, schools, shops and shopping centres, office buildings, pubs, motorway services, factories and supermarkets. A modern stylish hand dryer that will effortlessly compliment a variety of interior styles. The Prism is one of our most energy efficient hand dryers.
- Features
- Technical Specifications
- Data Tables
Features
Features
• Smooth lines and sleek design
• High speed giving fast drying times
• Compact stylish design
• Saves energy relative to traditional hand dryers from reduced drying times
• Low 0.9 kW power rating
• Tailor output to meet your specific needs
• Element on/off switch allows power output to be reduced to 0.65 kW
• High quality stainless steel case

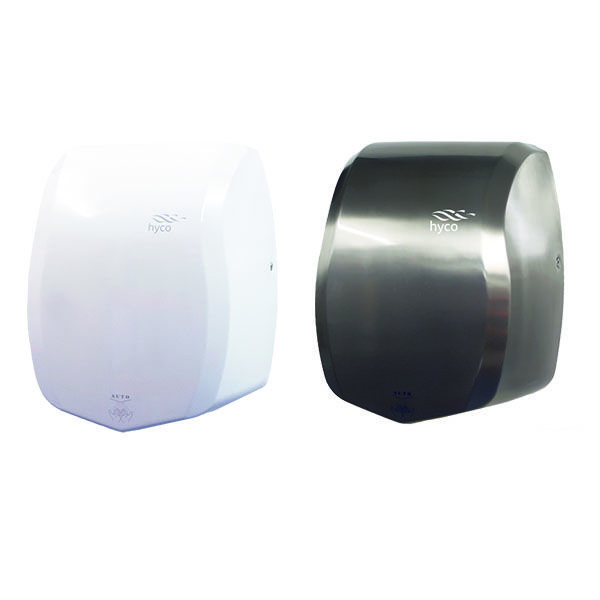

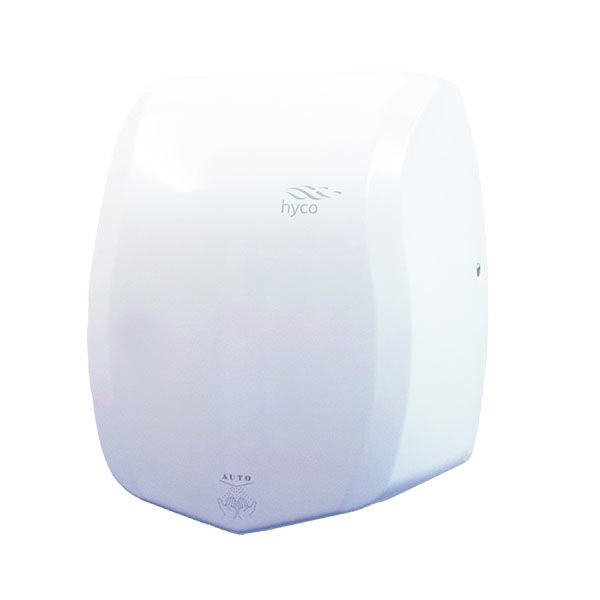

• Available in white or brushed stainless steel
• Vandal resistant
• Blue dry zone indicator
Technical Specification
Outer Casing
Stainless steel
Heating Element
250 W - Option to switch off
Motor
650 W
Current
4 amps
Air Speed
89 m/s
Air Volume
105 m³/h
Operation
Touch free automatic.
Safety
Overheat temperature protection.
Safety timer prevents continuous running.
IP Rating
IP22
Installation
Full fixing pack supplied.
Cable entry in the lower left rear corner.
Electrical Connection
Installation must comply with current IEE Regulations.
The product should be connected to the fixed wiring of the property via a double pole fused spur with a minimum break capacity of 13 amps.
Cable pre-wired (1m).
Class I
Approvals
CE, UKCA
Standard Warranty
3 year parts or replacement warranty.
Data Tables
power consumption 2.6 kWh per 1000 dries
| Product Code | Finish | Power (kW) | Sound Level (dB) | Dry Time (seconds) | Air Speed (m/s) |
|---|---|---|---|---|---|
| PRMW | White | 0.65 - 0.9 | 80 | 10 - 15 | 89 |
| PRMBSS | Stainless steel | 0.65 - 0.9 | 80 | 10 - 15 | 89 |

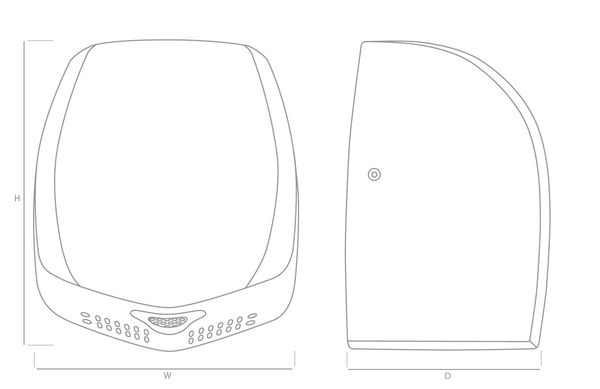

| Product Code | Height (mm) | Width (mm) | Depth (mm) | Weight (kg) |
|---|---|---|---|---|
| PRMW | 300 | 250 | 169 | 3.4 |
| PRMBSS | 300 | 250 | 169 | 3.4 |
