Tornado
2.5 kW Automatic
Traditional, Hand and Face
Usage:
Suitable for many public washroom applications including restaurants, shops and shopping centres, office buildings, pubs, motorway services, factories and supermarkets.
- Features
- Technical Specifications
- Data Tables
- Spares
Features
Features
• Traditional high powered hand dryer
• Hygienic automatic operation reduces the risk of spreading germs
• Easy clean stainless steel case

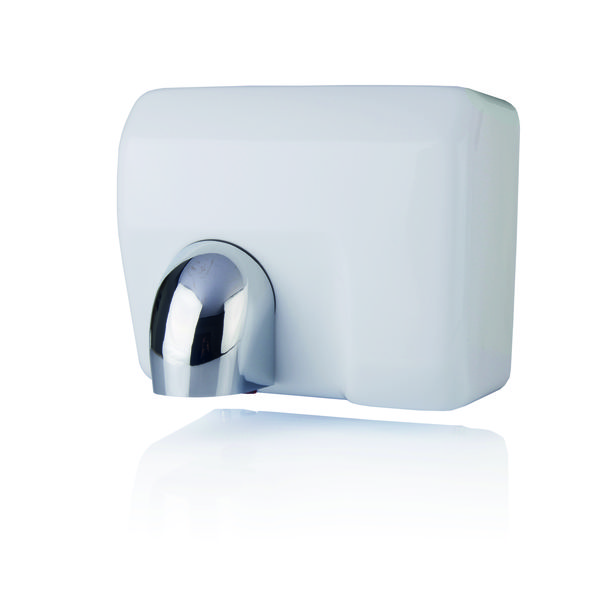

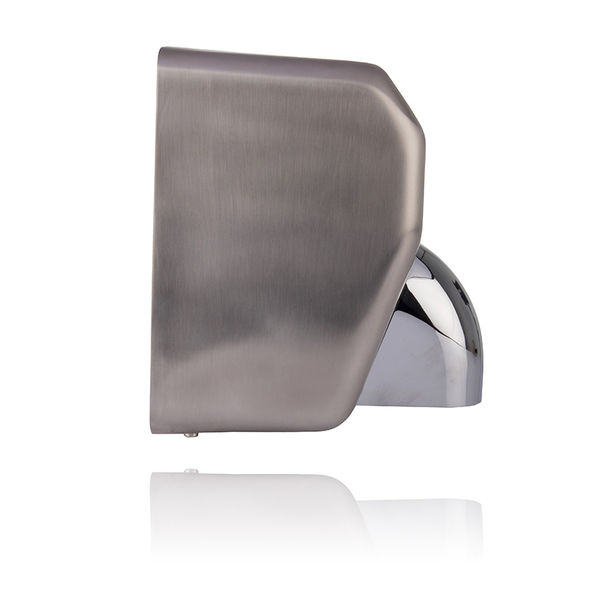

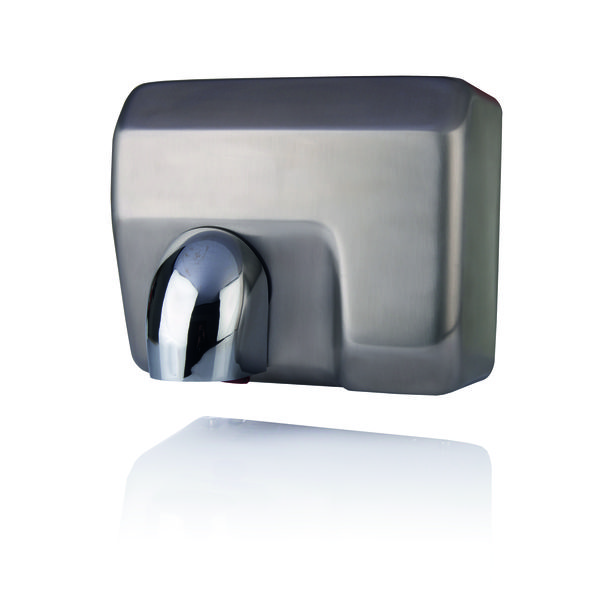

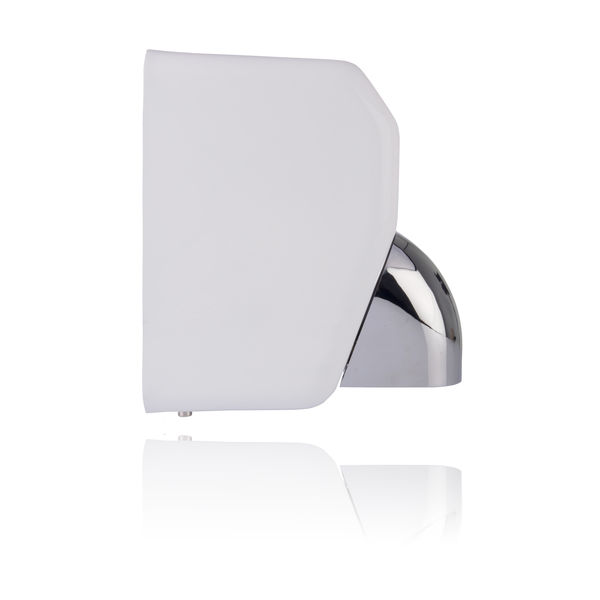

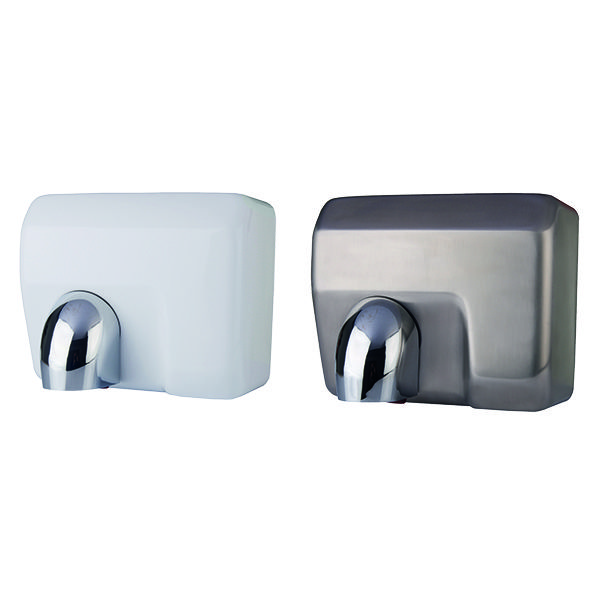

• Available in white and brushed stainless steel
• Vandal resistant
• Classic look
• Well suited to high traffic situations
• The chrome nozzle can be rotated for hand and face drying
Technical Specification
Outer Casing
Stainless steel
Heating Element
2200 W
Motor
300W
Carbon brush
7,500 RPM
Current
10 amps
Air Speed
30 m/s
Operation
Touch free automatic.
Safety
Overheat temperature protection.
Safety timer prevents continuous running.
IP Rating
IPX1
Installation
Full fixing pack supplied.
Cable entry bottom left at the base of the unit.
Electrical Connection
Installation must comply with current IEE Regulations.
The product should be connected to the fixed wiring of the property via a double pole fused spur with a minimum break capacity of 13 amps.
Class I
Approvals
CE, UKCA
Standard Warranty
3 year parts or replacement warranty.
Data Tables
power consumption 17.4 kWh per 1000 dries
| Product Code | Finish | Power (kW) | Sound Level (dB) | Dry Time (seconds) | Air Speed (m/s) |
|---|---|---|---|---|---|
| TOR25W | White | 2.5 | 75 | 20 | 30 |
| TOR25BSS | Brushed SS | 2.5 | 75 | 20 | 30 |

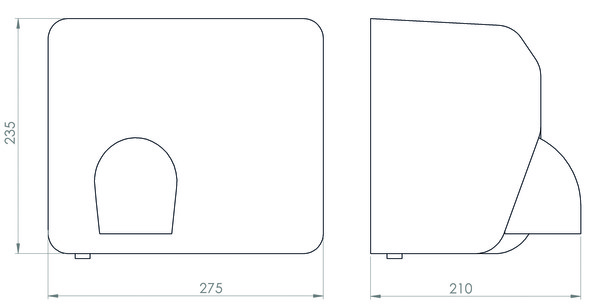

| Product Code | Height (mm) | Width (mm) | Depth (mm) | Weight (kg) |
|---|---|---|---|---|
| TOR25W | 235 | 275 | 210 | 5.7 |
| TOR25BSS | 235 | 275 | 210 | 5.7 |
Spares
Spare parts are available through our stockists.
A list of spare parts available for our current range is shown below.
For further help or advice please contact our customer services team on 01924 225 200 - we can usually help, for example, help diagnosing which part you need, help if you require spare parts for obsolete models or if you need fast delivery.
| Product Code | Description | Spare Parts for Product Code |
|---|---|---|
| TORBRUSHES | Tornado Brushes (pair) | TOR23W, TOR23BSS |
| TORELEMENT | Element for Tornado | TOR23W, TOR23BSS |
| TORPCB | Printed Circuit Board for Tornado | TOR23W, TOR23BSS |
| TORSENSOR | Sensor for Tornado | TOR23W, TOR23BSS |
