Unvented Accessory
5, 10 and 15 litre
Usage:
Depending on the details of the Speedflow installation additional accessories may be needed to comply with the Water Regulations.
- Features
- Technical Specifications
- Data Tables
Features
Features
Use the unvented accessory flow chart and diagrams to determine which, if any accessories are required. If in doubt a Pressure and Expansion kit should always be installed. Or use catalogue page via downloads tab at the bottom of the page.
Pressure and Expansion Kit
Low cost install - pressure and expansion - SF4 kit
Expansion vessel, check valve and pressure reducing valve.
Fast install - pressure and expansion - SF7 kit
Expansion vessel, pressure reducing valve and fast install inlet group incorporating check valve.
Expansion Kit
Low cost install - pressure and expansion - SF3 kit
Expansion vessel and check valve.
Fast install - pressure and expansion - SF6 kit
Expansion vessel and fast install inlet group incorporating check valve.
Technical Specification
Pressure and Expansion Kit

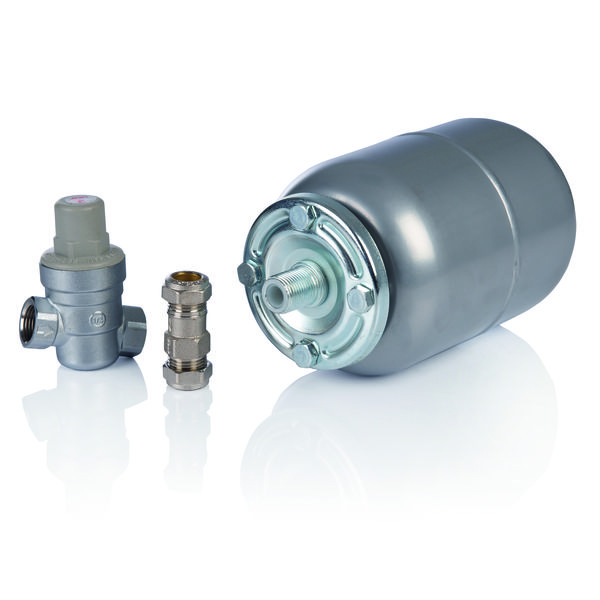

SF4 Kit
Expansion vessel, check valve and pressure reducing valve.
SF7 Kit
Expansion vessel, pressure reducing valve and fast install inlet group incorporating check valve and service valve. Tundish and flexible hose.
Expansion Kit

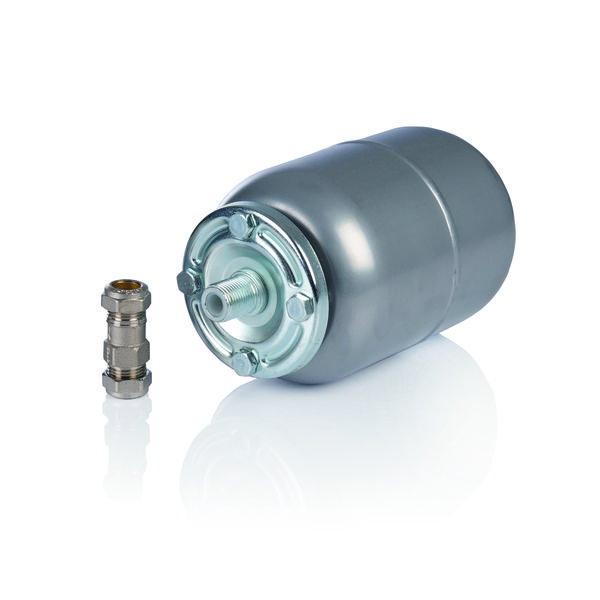

SF3 Kit
Expansion vessel and check valve, 2 litre expansion vessel set at 3.5 bar.
SF6 Kit
Expansion vessel and fast install inlet group incorporating check valve and service valve. Tundish and flexible hose.

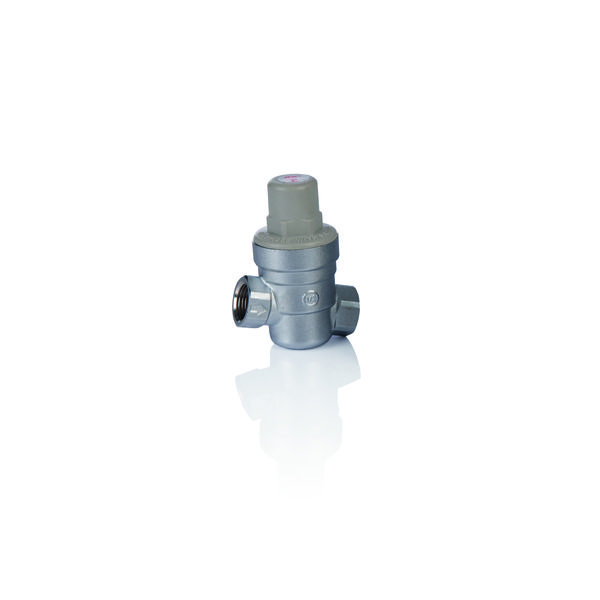

SF5 Kit
Pressure reducing valve set at 3 bar

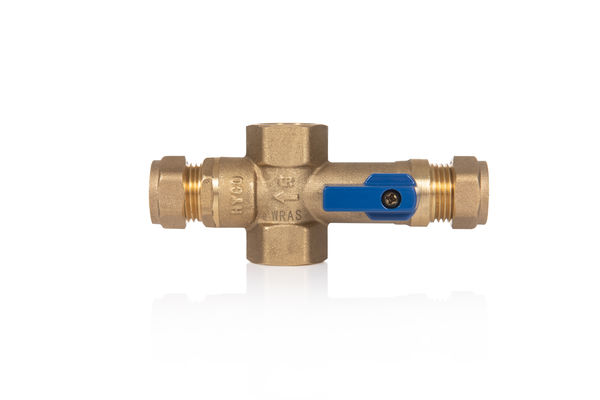

SF8 Kit
Fast install inlet group incorporating check valve
Data Tables
| Accessory | Height (mm) | Width (mm) | Depth (mm) | Weight (kg) |
|---|---|---|---|---|
| Expansion vessel | 225 | 120 | 120 | 1.0 |
| Check valve | 65 | 25 | 25 | 0.1 |
| Pressure reducing valve | 73 | 64 | 46 | 0.3 |
| Inlet group | 52 | 120 | 44 | 0.3 |
